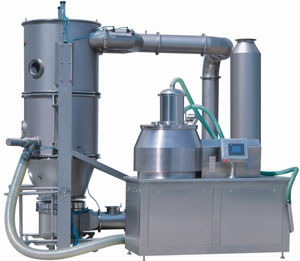

Descriptions of Granulating Machine Sets:
1. LFLseries granulating machine sets are a newly-designed production line incorporating highly-efficient wet granulator, swing granulator, fluid bed dry granulator, etc., adopting advanced pharmaceutical technologies.
2. This kind of pharmaceutical machinery can meet the requirements of different production techniques, such as wet granulation, granulation before tabletting, granule formation, pellet coating

Features of Granulating Machine Sets:
1. Shorten the production cycle, simplify the operation
2. Adopt vacuum charging, high-efficient mixing granulation, centrifugal cutting and fluid bed drying technologies for reduced labor intensity and pollution, improved production efficiency
3. Retain the operational flexibility of a single machine for widened applications of the machine sets
4. All processes from design to assembly, coupled with the adoption of locking programs upon maloperation, are carried out with a primary focus on the practical utilization, thus decreasing the potential unsafety in operation, preventing damage to the machines and prolonging the working life of the sets
5. Multiple automatic operation programs are available for users' own design and call to guarantee the stable product quality.

Technical Parameters of Granulating Machine Sets:

Model	Boiling dry granulator	Wet-type granulator	swing granulator	Size(A*B*H)
LFL60	FL60	LFSG200	YK160	4300×4050×3600mm
LFL120	FL120	LFSG300	YK160	4800×4700×3900mm
LFL200	FL200	LFSG300	YK160	5200×5000×4900mm

Remark: The installation size is adjustable according to the factory area.

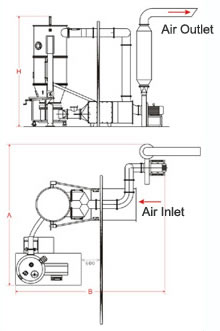

Structure of Granulating Machine Set:
